Garden Intervention

Due to the lack of green space around this busy intersection, I designed a triple-tiered gardening space with a curved roof which filters sunlight, rainwater, and wind. Materials are primarily made of glass, steel, and wood. The open-air 3rd level includes an inverted waterfall that flows toward 1st level indoor greenhouse, with intent to accommodate for hazardous weather conditions.

3D Render

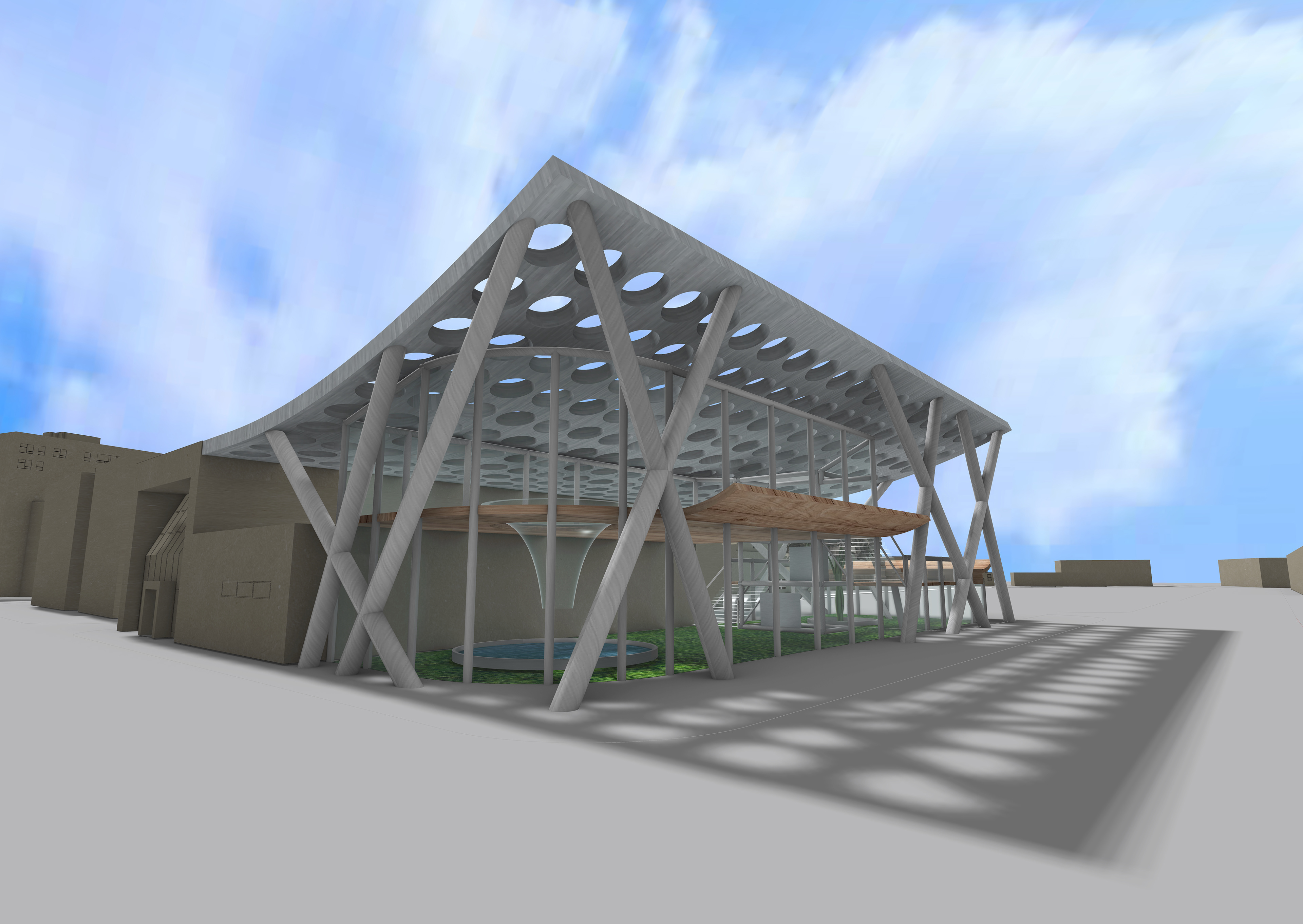

Exterior Render

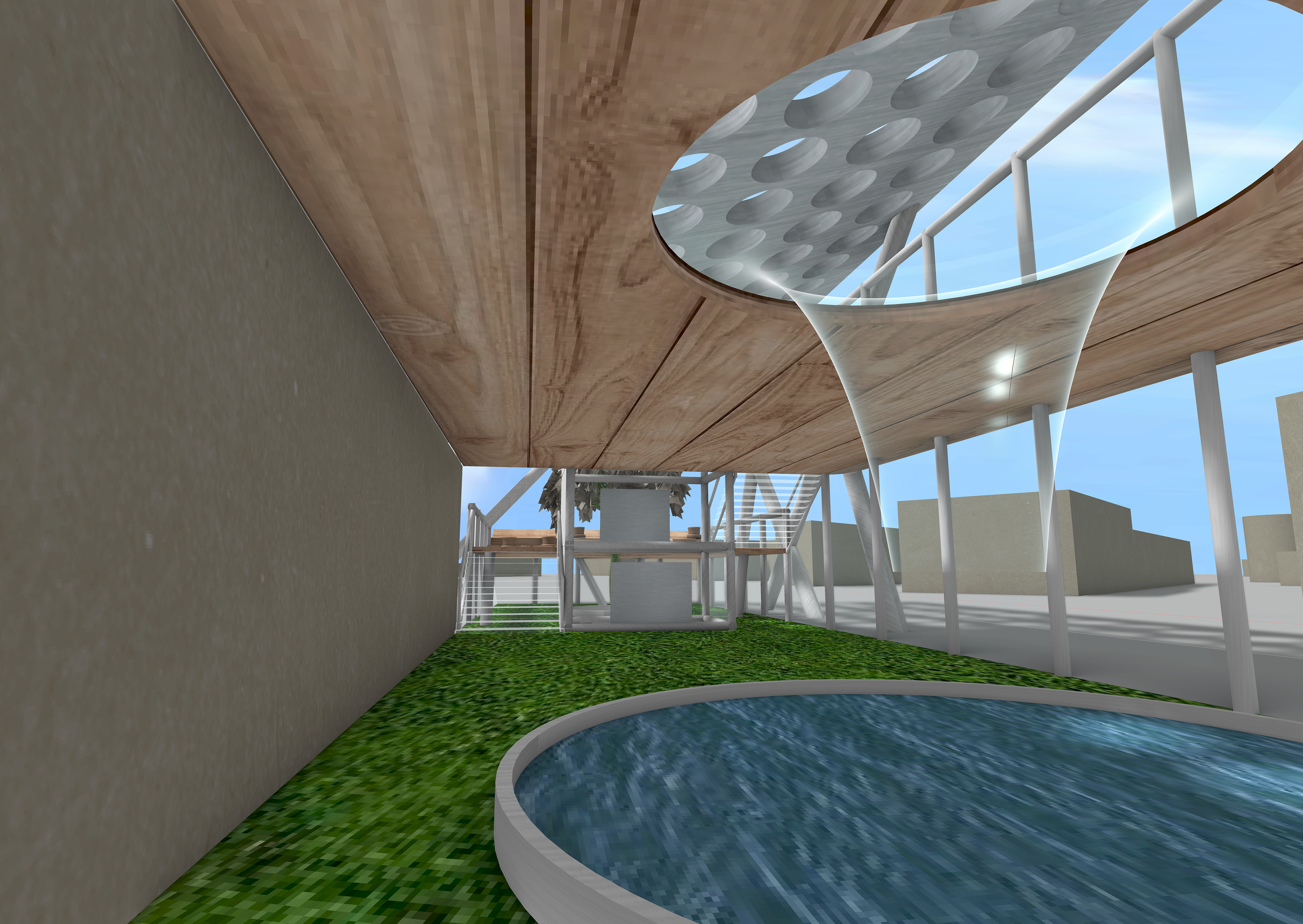

Interior Render 1
Interior Render 1
Interior Render 2
Interior Render 2
Interior Render 3
Interior Render 3

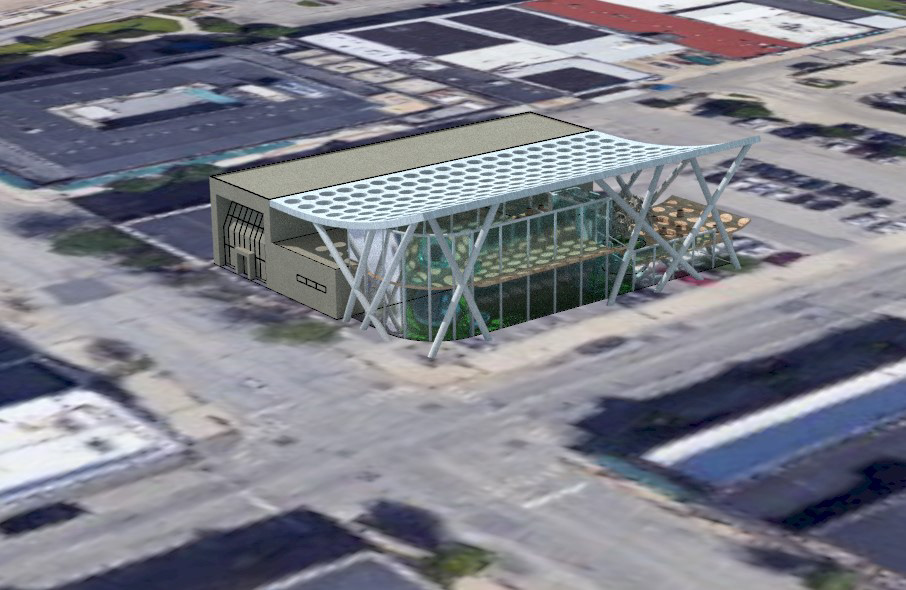

Exterior Render with site
Exterior Render with site

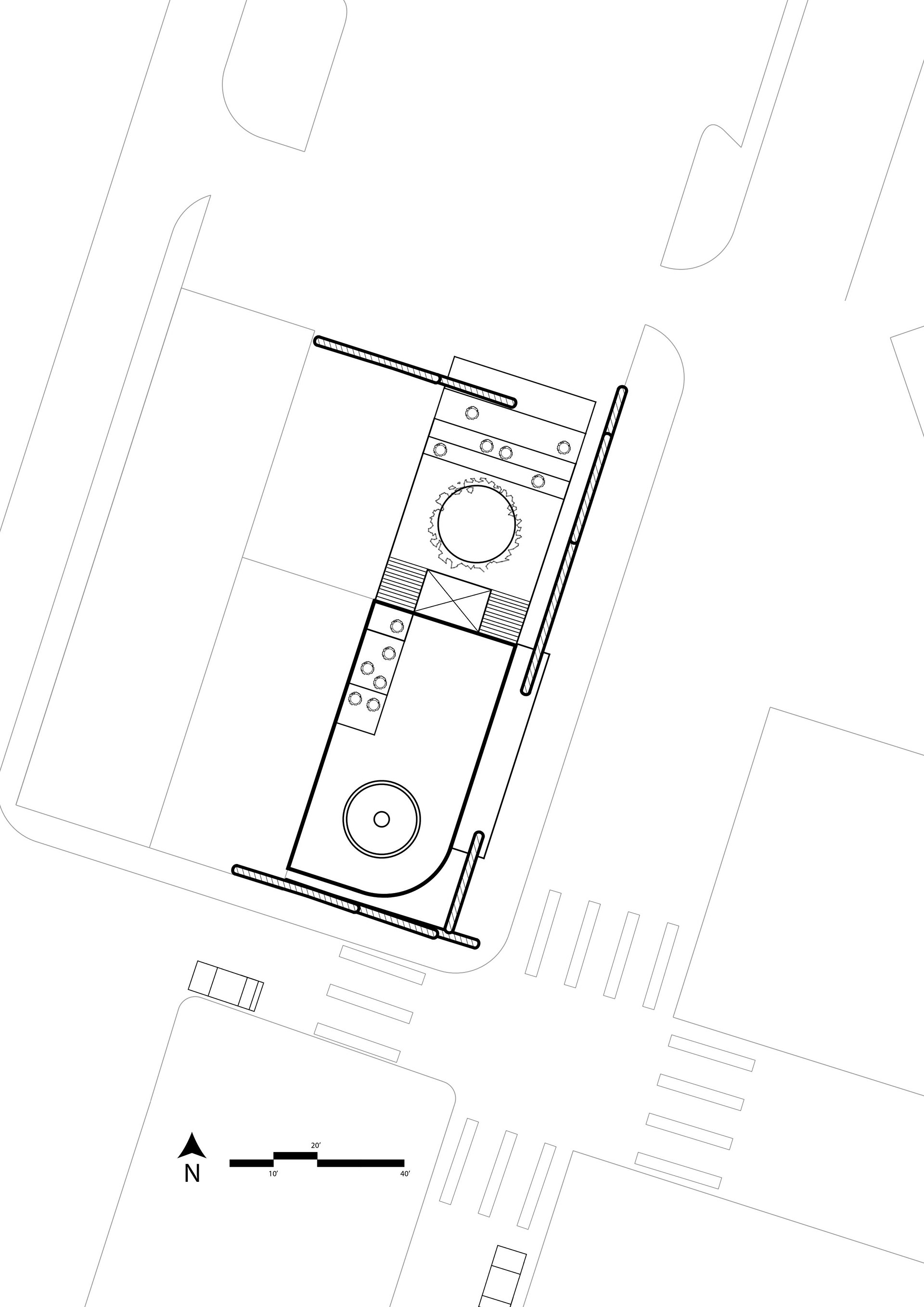

Site Plan
Site Plan

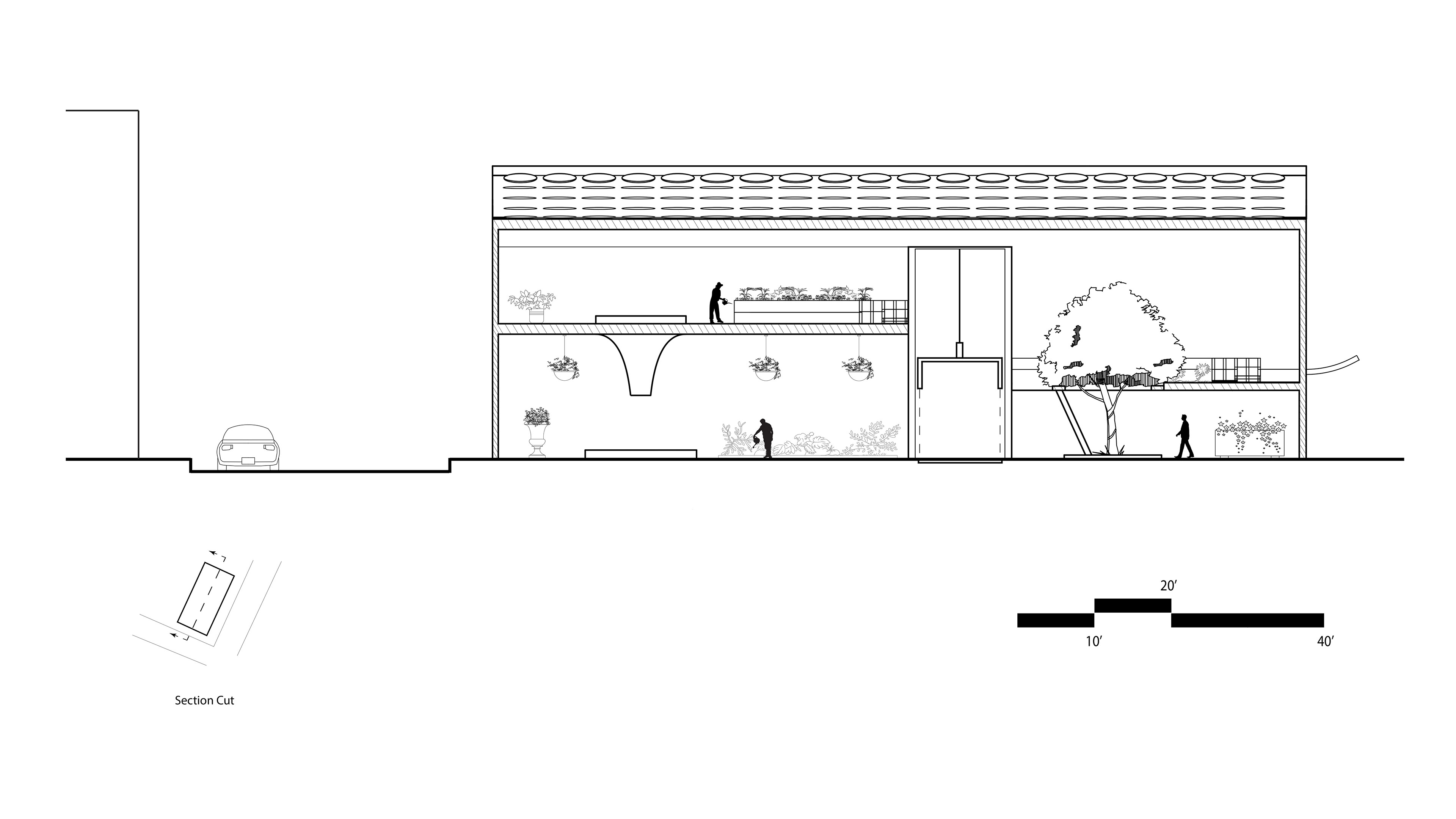

Section Cut
Section Cut

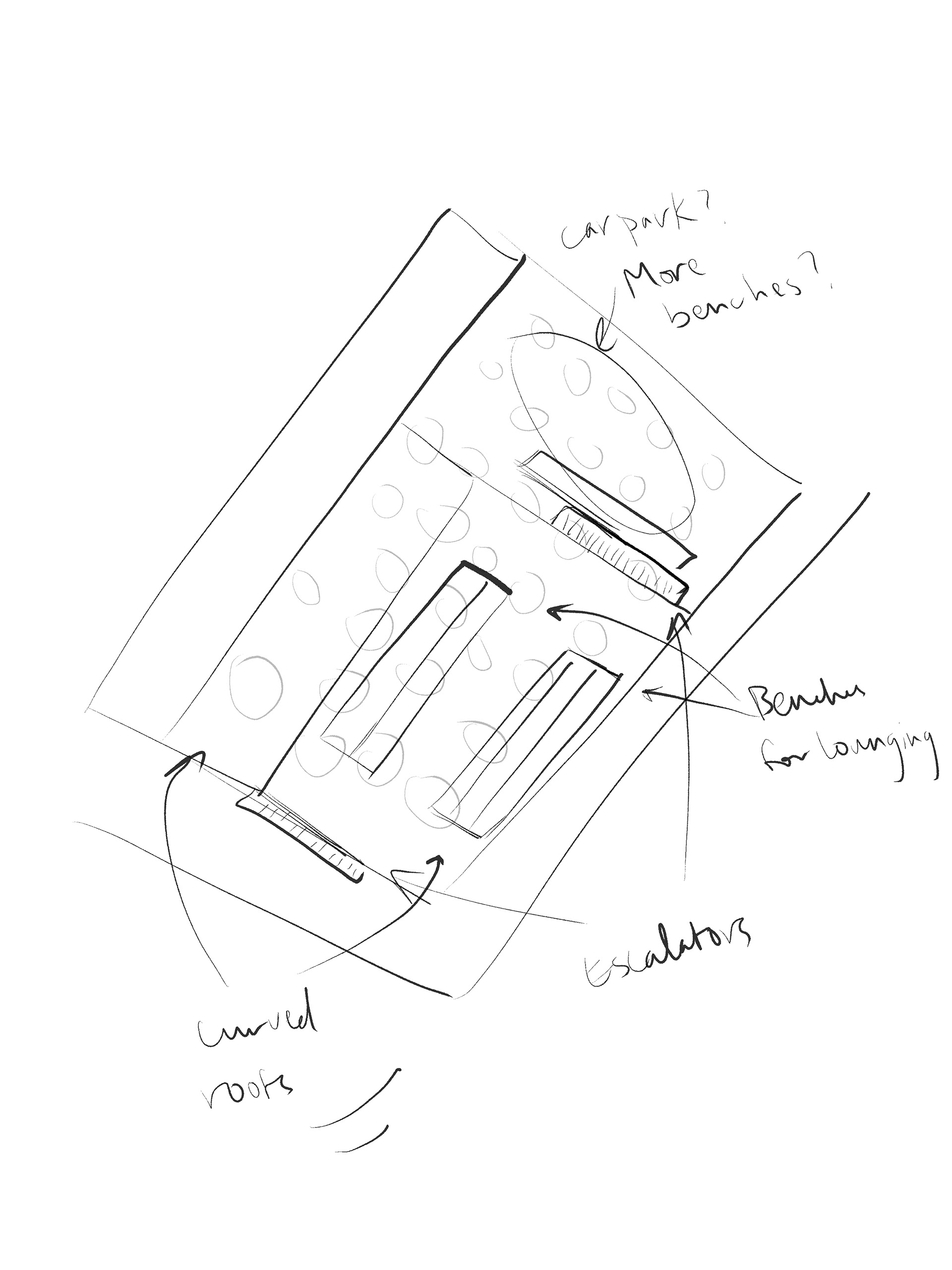

Process Map - Plan
Process Map - Plan

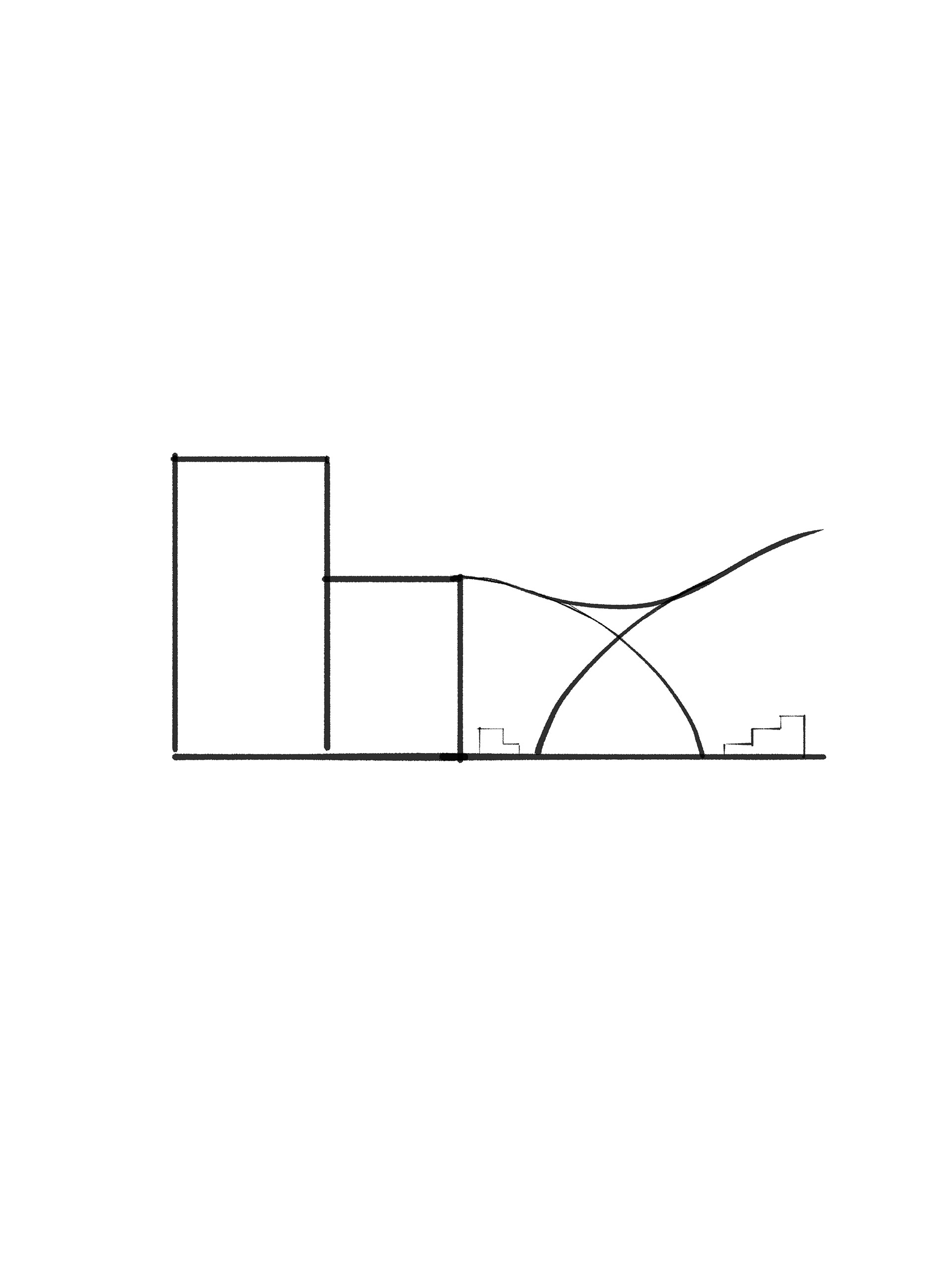

Process Sketch - Elevation
Process Sketch - Elevation
Interior of Iteration 1 - multi-level recreation space with escalators
Interior of Iteration 1 - multi-level recreation space with escalators
Interior of Iteration 2 - Wanted to keep overarching roof
Interior of Iteration 2 - Wanted to keep overarching roof
